Auto Hematology Analyzers

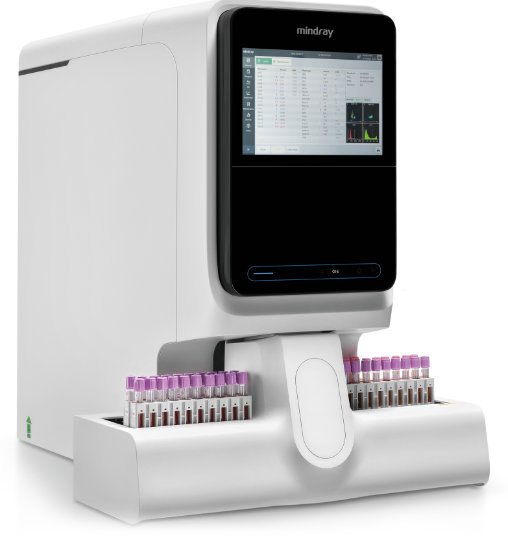

BC-7600 Series
One Tube, One Process with Maximum Efficiency
One Tube, One Process with Maximum Efficiency
BC-7600 Series Auto Hematology Analyzers provide comprehensive solutions for complete blood count (CBC), differential white blood cell count (DIFF), hematological malignant cells, low-value WBC/PLT, PLT clumps, etc. They also support the analysis of body fluids.

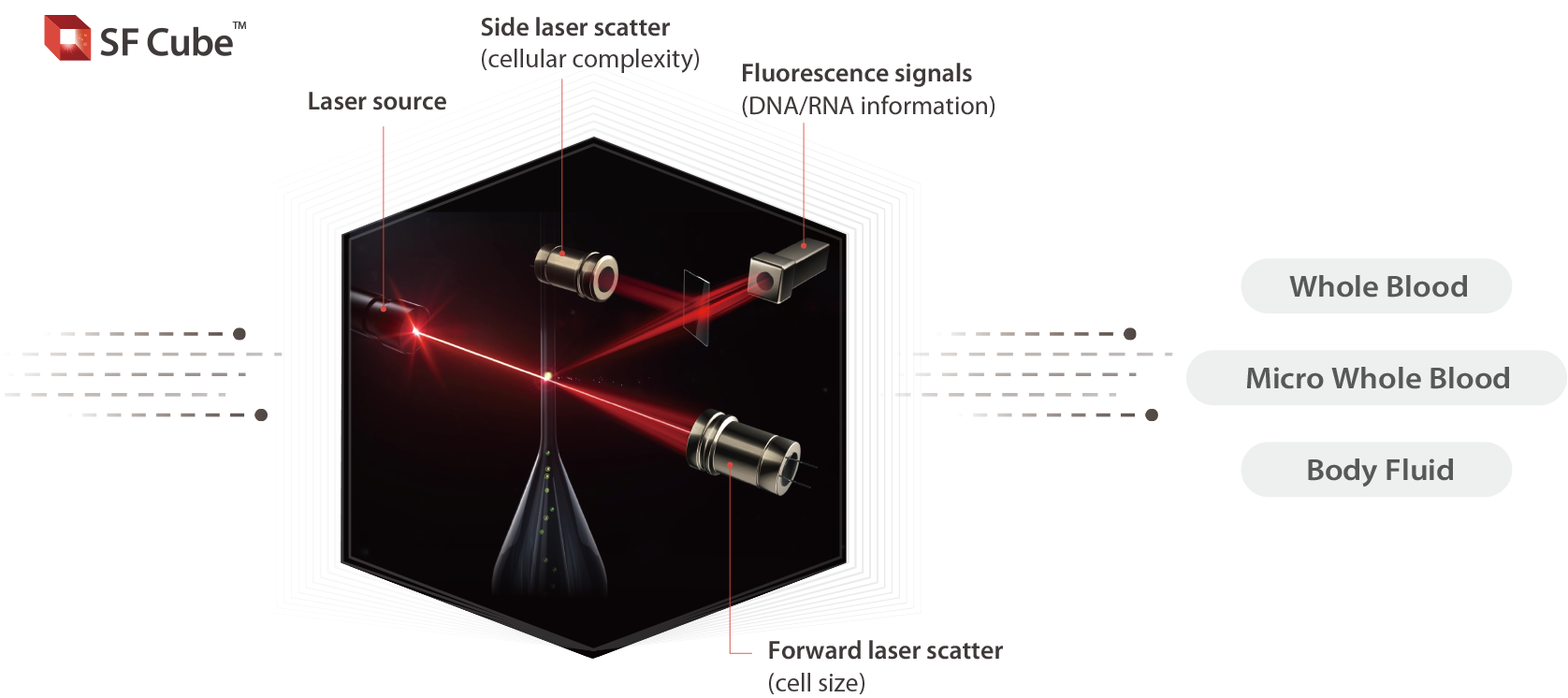

BC-7600 Series adopts SF-Cube principal, which has a good correlation with other Series for cross-checking of patient results.
High Sensitivity and Specificity of Blast Flagging Capability for Preliminary Screening
The coordinated analysis technology of WNB and DIFF scattergarms give sensitive alerts for “Blasts" with high specificity to reduce unnecessary labor-intensive manual microscopy.
DIFF 3D scattergram
Coordinated analysis

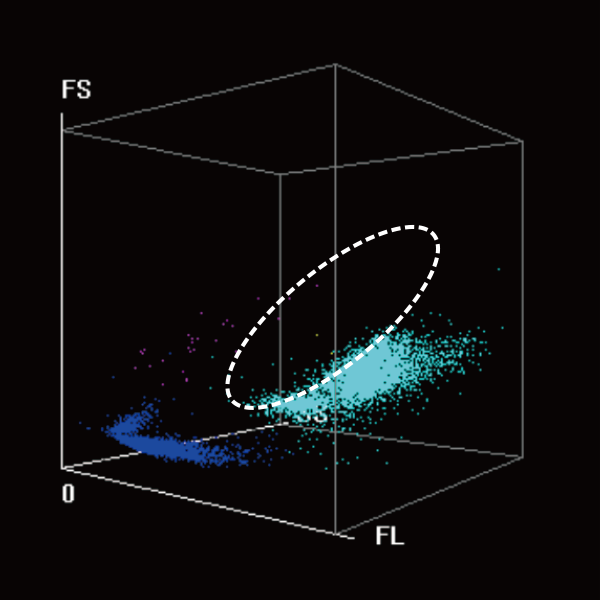

WNB 3D scattergram
Abn. Lymph/blast?
Abn. Promyelocyte/blast?
The detection concentration is as low as 0.03×10?/L
Flag Towards Precise Screening of Infectious Mononucleosis (IM)

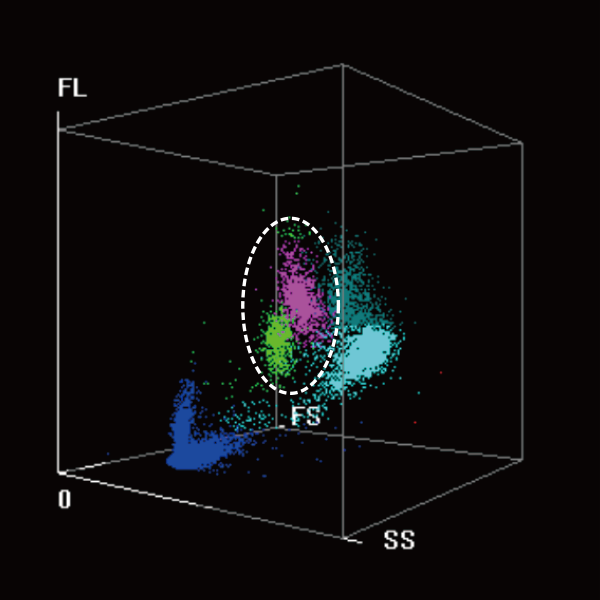

DIFF 3D scattergram

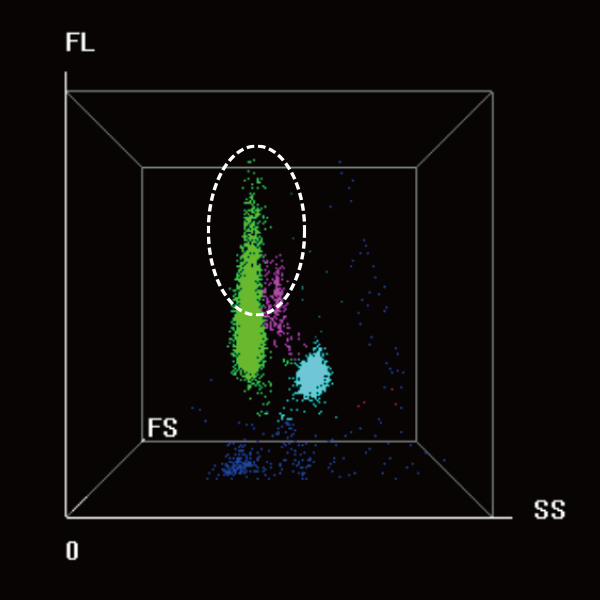

3D Scattergram of typical infectious mononucleosis
Alert precisely for reactive lymphocytosis caused by infectious mononucleosis
through the distribution characteristics of scatter plots
Reactive Lymph-IM?
Higher Specificity for Hematological Malignant Cells
By using the HMC scattergram and combining information from the DIFF and WNB scattergrams, precise alarms for blast cells, abnormal lymphocytes, and abnormal promyelocytes are achieved, effectively aiding clinical diagnosis.
The specificity has been improved by approximately 40% compared to CD mode.
Abnormal promyelocyte
Blast
Abnormal lymphocyte
Others

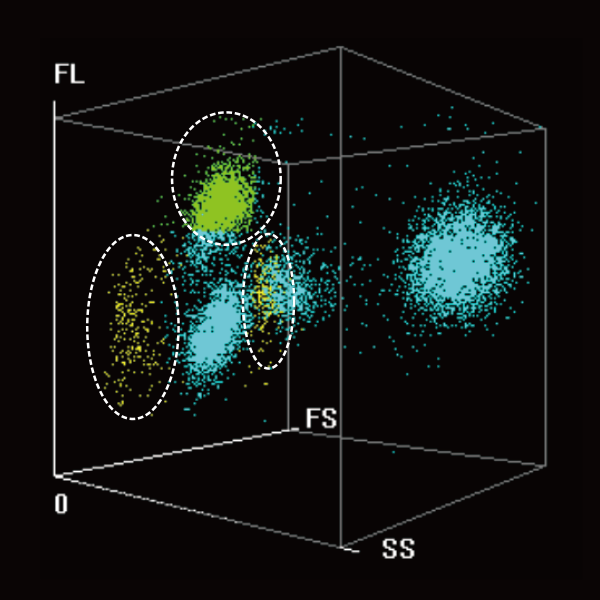

Typical samples of
acute promyelocytic
leukemia (APL)
Blasts
Abn. promyelocyte?

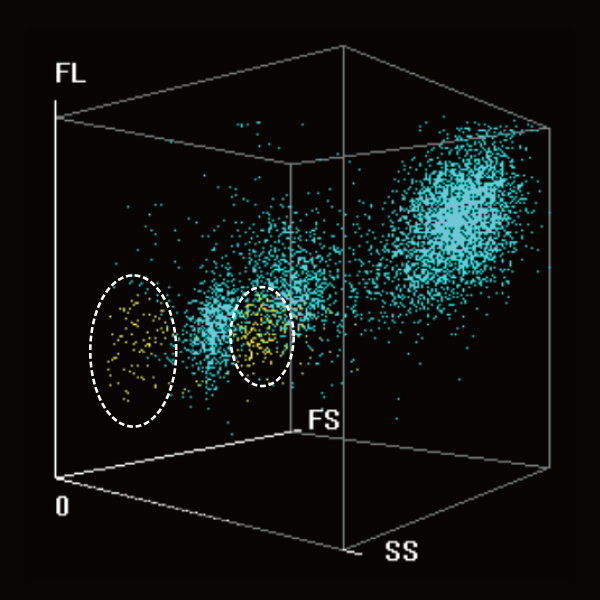

Typical samples of
acute monocytic leukemia
(M5)
Blasts

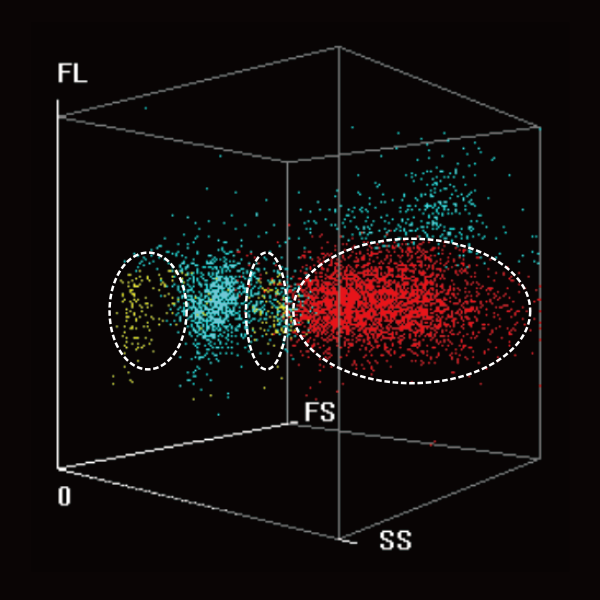

Typical samples of
hairy cell leukemia
Abn. Lymph?
Blasts
HMC 3D scattergram

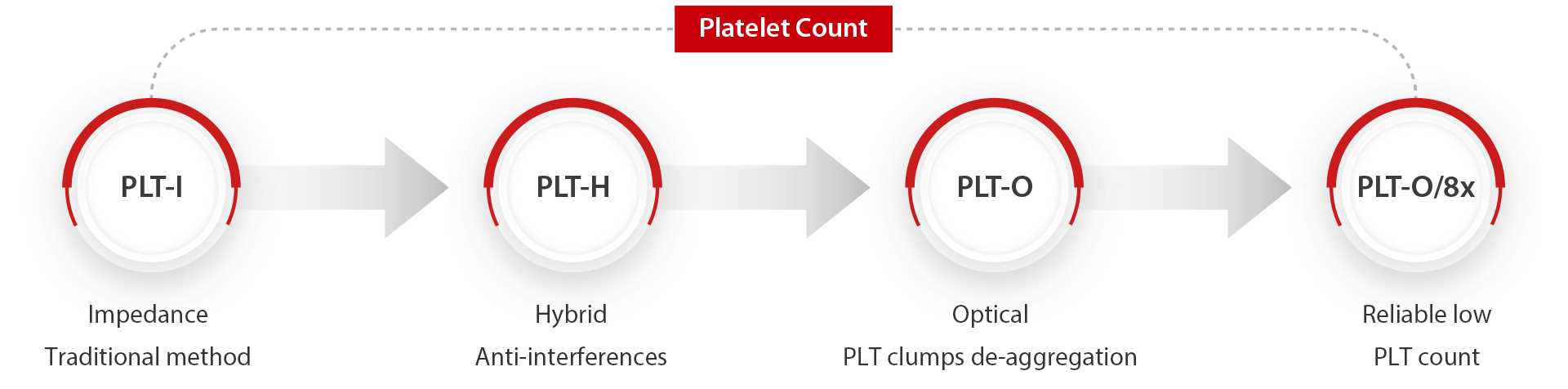

Comprehensive Solution for Accurate PLT Results

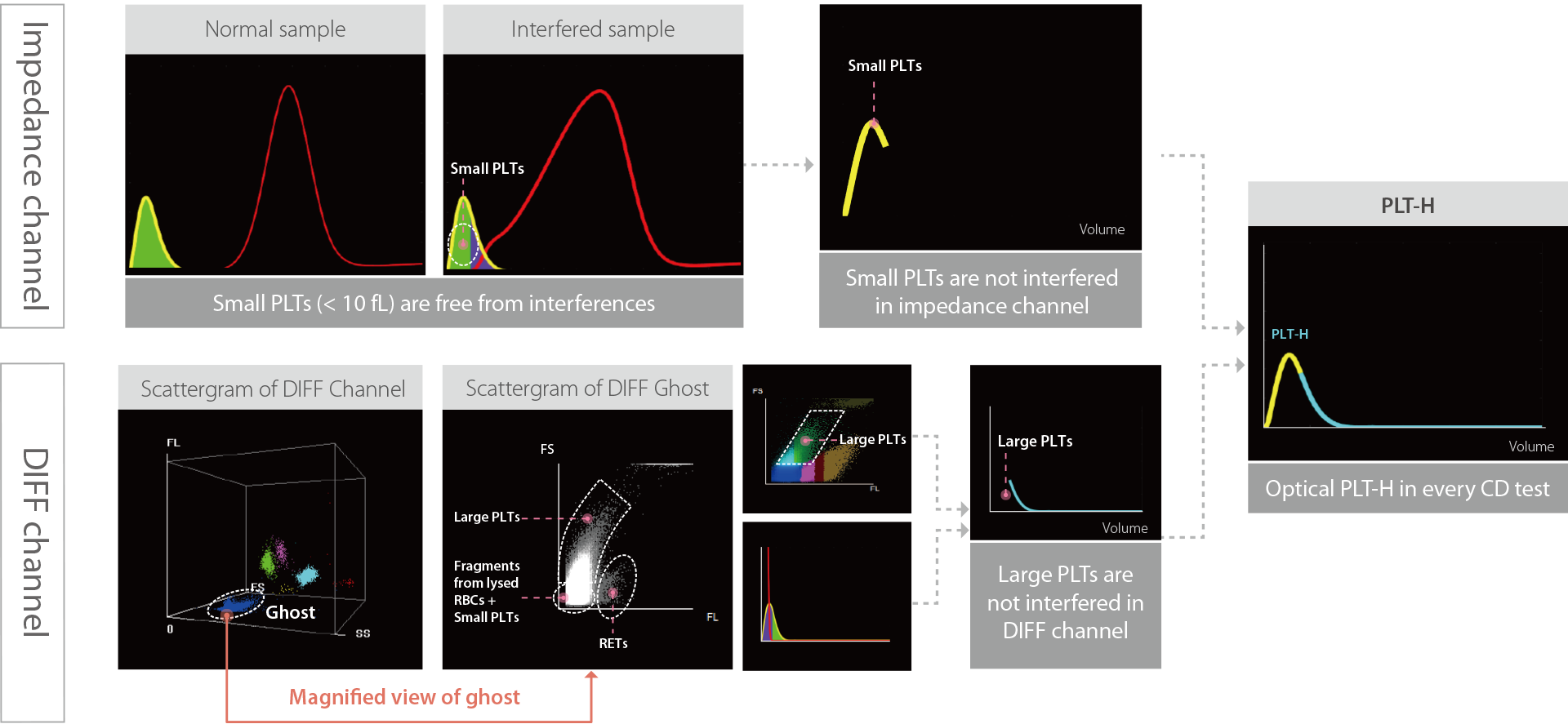

Brand new PLT-H in every CD test
PLT-O with Multiple Counting for Low-count Platelet
There is no need to re-aspirate samples. The instrument will automatically conduct 8 times statistical analysis on low PLT count samples to improve the detection accuracy.

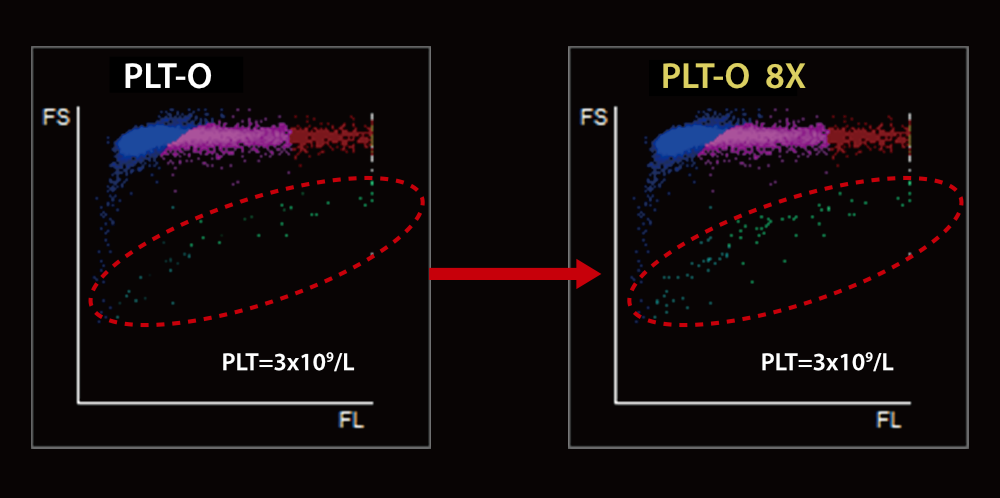

Scattergram before and after Auto 8x PLT-O counting

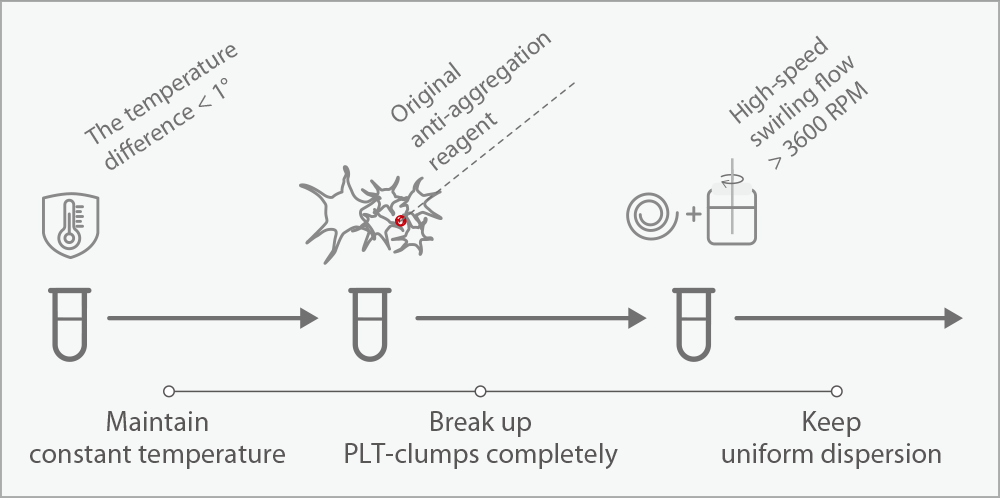

PLT-O with automated PLT-clumps de-aggreation technology
It solves the problem of falsely low PLT count samples caused by EDTA induced pseudo-thrombocytopenia.
Automatic retraction and re-testing with PLT-O
CBC + DIFF + ESR in one test provide reliable ESR results with greater ease
The BC-7600 series integrates an automatic ESR module in a hematology analyzer. It can also generate both CBC & ESR results in one test within 40 seconds. In addition, it saves the costs that would otherwise be incurred for the purchase, maintenance, consumables, and storage space of a separate ESR analyzer. Compared with the traditional Westergren method, this method performs better in quality traceability, repeatability, speed, safety, and level of automation.
Accurate
Cost-effective
Automatic
